Zontop Modern Luxury Easy Assemble 2 Story China Prefabricated 20ft 40 Ft Shipping Prefab Container House

Place of Origin : Shandong, China

Brand Name : ZONTOP

Model Number : ZTXF-200

Certification : ISO9001/TUV/SGS/CE

Packaging Details : Packaging Details
1) Main frame structure are packing firm.
2) Panels are film laminating, nude packing.
3) Windows are wooden box packing.
4) Doors are carton box packing.
5) Electric and plumbing units, accessories are wooden box

Supply Ability : 3000 Unit/Units per Month

MOQ : 5 Units

Price : $1,650.00/Units 100-199 Units

Warranty : 3 years

After-sale Service : Online technical support, Onsite Installation, Onsite Training, Onsite Inspection

Project Solution Capability : graphic design, 3D model design, total solution for projects, Cross Categories Consolidation

Application : Hotel, Construction site, Hotel, House, Office Shop, School, Factory

Use : Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant

Product Type : Container Houses

Design Style : Traditional

Name : Dismantled Flat Pack Container House

Keyword : Cotainer House

Structure : Galvanlized Steel Frame

Door : Steel Security Door

Window : Aluminum Alloy Window

Roof : Sandwich Panel+ Decoration Ceiling

Floor : Plywood+pvc Floor

Wall : 50mm/75mm Sandwich Panel

Port : Qingdao, Shanghai, Dalian, Tianjin

Contact Now

  CE ISO  Made in China Prefab 20ft 40ft flat pack container house



Product Introduction

The container house is made by steel frame structure, which adopts Hot-form galvanized steel. Structure is consists of three modular parts: roofing frame, corner column and floor frame. Each modular is manufactured at the factory and assembled on construction site.  With one single container house as basic unit, it can be combined horizontally or vertically in different form like building blocks. Flat pack container house can be stacked in three storeys with flexible in space layout and multiple function, and can be used in different application fields.



Zontop Modern Luxury Easy Assemble 2 Story China Prefabricated 20ft 40 Ft Shipping Prefab Container House

 Zontop Modern Luxury Easy Assemble 2 Story China Prefabricated 20ft 40 Ft Shipping Prefab Container House

Manufacturing Technology

The production process introduces advanced design concept, production material has adopt double side full-color steel sandwich panel. 75-100mm glass fiber sandwich panel, bolt, Q235 strip steel frame structure(galvanized and anti-rust, anti-corrosion),18mm thickness cement particle board etc. The container house can be used confortably for anytime anywhere.

 Zontop Modern Luxury Easy Assemble 2 Story China Prefabricated 20ft 40 Ft Shipping Prefab Container House

Zontop Modern Luxury Easy Assemble 2 Story China Prefabricated 20ft 40 Ft Shipping Prefab Container House



Product Advantages :
1.Flexible combination,modular house can be easily combined, time and labor saving.
2.Easy assembly. We provide install drawing and video.
3.Good insulation. It can suffer extreme climate.
4.Good looking and neat inside.
5.Good resistance for water,wind and earthquake.
6.long lifespan 15-20 years

 Zontop Modern Luxury Easy Assemble 2 Story China Prefabricated 20ft 40 Ft Shipping Prefab Container House

The dimension and material of container house

Item

Materials

Dimension

Length: 6055mm

Width:  2435mm (Can up to 3000mm)

External Height: 2920mm

Internal Height: 2550mm

Weight

18000

STEEL FRAME

1.Material: Q235 galvanized steel; thickness, 2.5~4.0mm

2.Floor Support:C100x40x2.0 or C80x40x1.2 purlin

3.Connection: high strength bolt M12*40

4.Surface working: sand blasting, epoxy basic painting 55μm,
final vinyl acrylic painting 55μm thick

Top and bottom gray (rust-proof primer, gray finish)

Column: 210x150x2550mm 2.5mm--4pcs

Wall

 Wall Panel: 75mm thickness glass fiber sandwich panel

 0.5mm colored steel

ROOF

Outside Steel: 0.5mm steel sheet

Keel: C80x40x20x2.0 or C80x40x1.2 steel purline

Insulation Layer: 100mm thickness fiber glass(16kg/m3),

Fire-proof level: A

Ceiling: 0.5mm colored-steel +Ceiling aluminum edge

Rainspout:Water flow to the four corner

 FLOOR

Material: Q235 galvanized steel; thickness, 2.5~4.0mm
Keel: C100x50x2.0 or C100x50x1.5 square tube,galvanized steel

Insulation Layer: 100mm thickness fiber glass

Cement floor: 18mm thickness cement particle board
Surface: PVC Floor leather (thickness 2.0mm)

Doors

0.5mm double-sided steel security door

Size: 970x2070mm

Lock: high quality press lock

Windows

Windows : Plastic steel hollow glass sliding window (usually 2pcs)

with screen window and security net

Size: 930x1200mm

Electricity System

Double tube fluorescent light (usually 2 pcs)

Distribution board: CE approval (1 pcs)

The lines inside the wall panels

Electrical wire, 2.5mm2 for lighting system,

4mm2 for AC units. copper core

3 sets of 16A five holes universal socket and 1 air conditioning socket

Electrical distribution box + breakers + earth leakage protective device

Voltage: 110~220V, 50~60Hz

Others

 Lift corner piece

Rainspout: Φ50PVC pipe and others

Optional

1.Exhaust fan

2. Floor heating: 100mm thickness fiber glass(16kg/m3),

Fire-proof level: A

3. Sanitary ware:

Western Close tool: ceramic, with pipes and installation fittings
Urinal: ceramic, with pipes and installation fittings
Wash basin: ceramic, with post, faucet, pipes and installation fittings
Shower head, Shower base, Water mixture

4. Air condition

5. Office furniture

Packing

6sets in a 40GP/40HQ container



 Zontop Modern Luxury Easy Assemble 2 Story China Prefabricated 20ft 40 Ft Shipping Prefab Container House

Zontop Modern Luxury Easy Assemble 2 Story China Prefabricated 20ft 40 Ft Shipping Prefab Container House





The main features for container house:

1) It could be widely used as house, office,meeting room,dormitory, storage, shower rooms,guard, toilet,hotel, shop, restaurant, booth, kiosk etc.

2) Several units could be combined and stacked to be a big beautiful building based on customized designs, with inside,outside, stairs, aisles and porch container house.

3)It could be assembled and disassembled by hands, 100% nut-bolt connection, two men could install one set in 2hours.

4)The top and bottom main steel frames were welded separately, upgrade and strengthened panels, door, window, it is of high firmness and excellent performance of waterproof, thermal and sound insulation with long service.



Zontop Modern Luxury Easy Assemble 2 Story China Prefabricated 20ft 40 Ft Shipping Prefab Container House

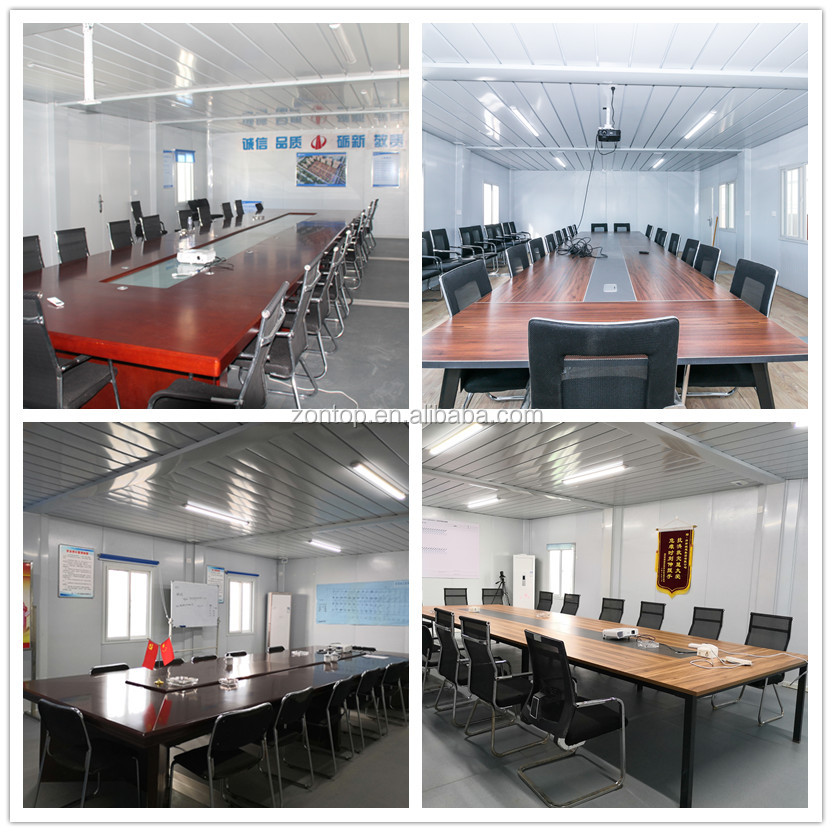

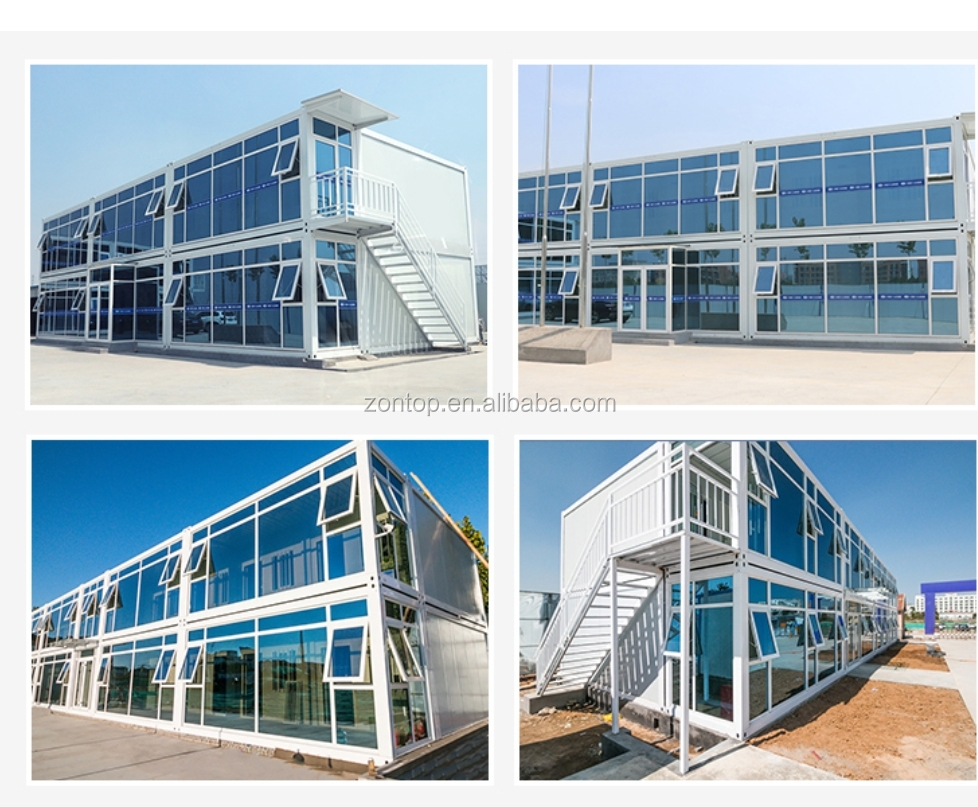

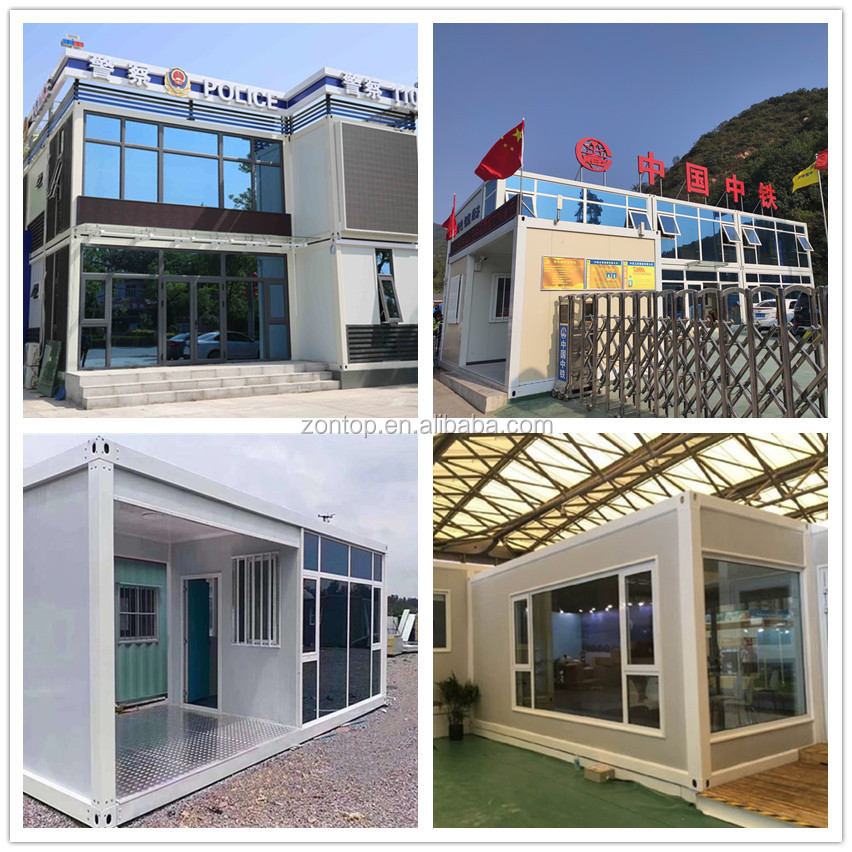

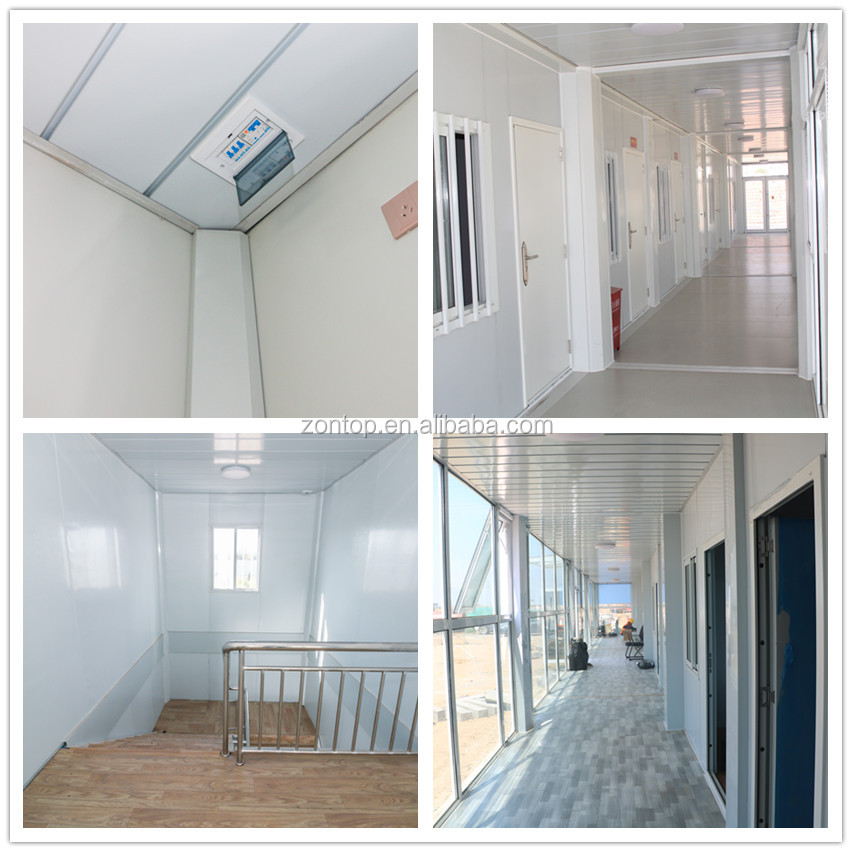

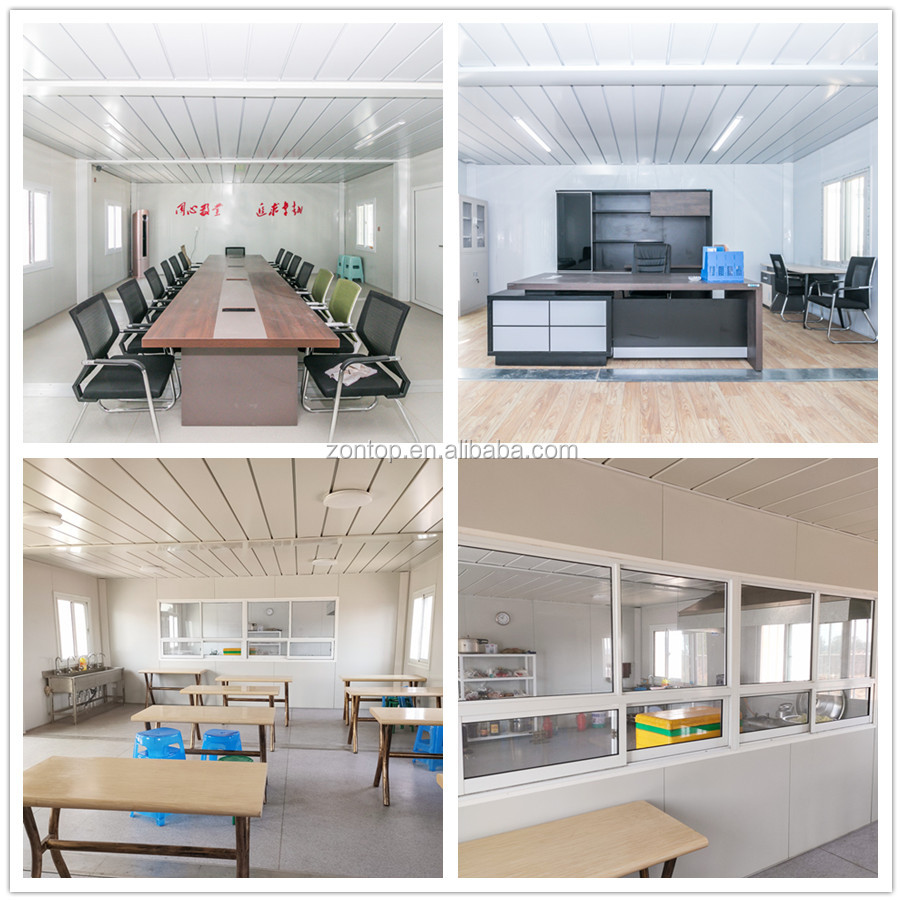

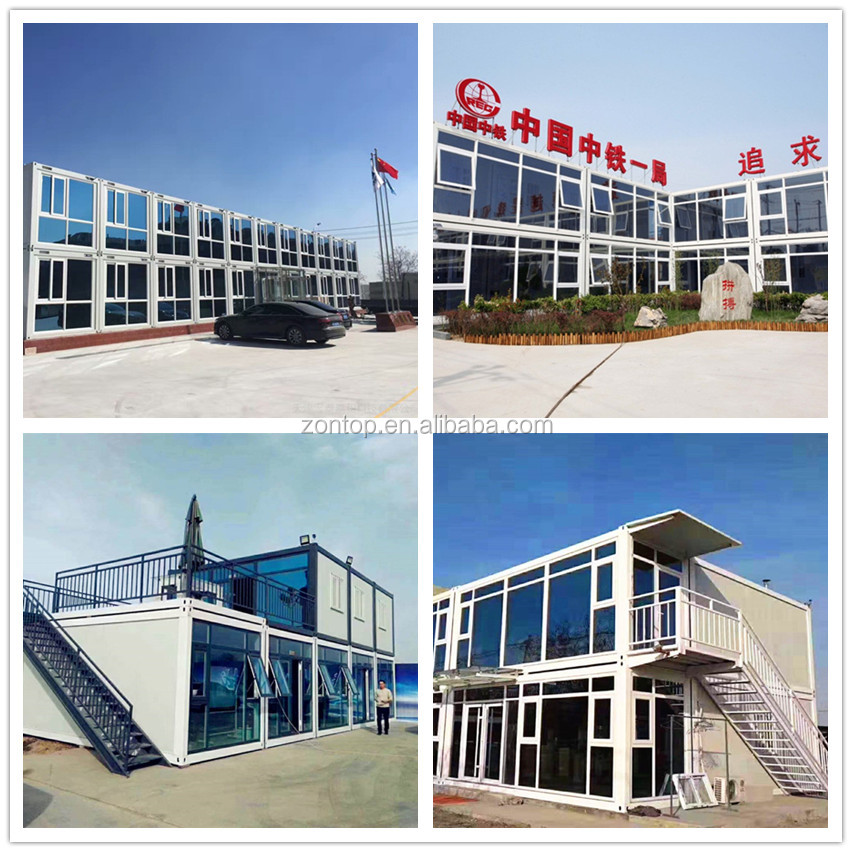

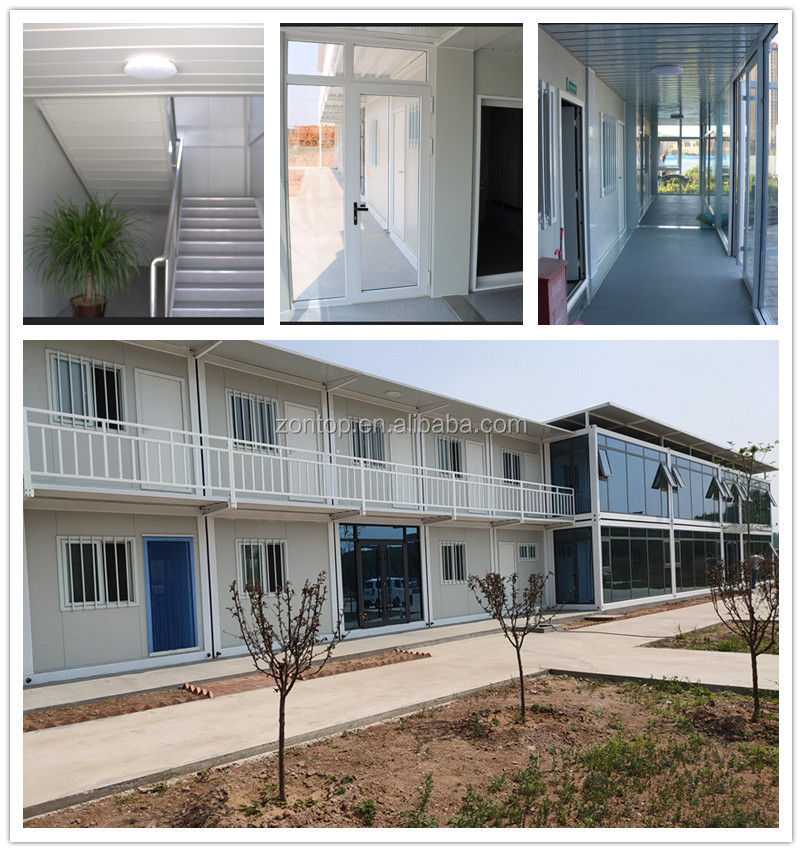

Product display

Zontop Modern Luxury Easy Assemble 2 Story China Prefabricated 20ft 40 Ft Shipping Prefab Container HouseFlat pack container house adopts cold-form galvanized steel structure with three modular parts: roof frame, corner columns and floor frame, it is easy to assemble the modular parts together at construction site.  With one basic container house, it can be combined both horizontally (units quantity as your requirement) or vertically (3 storeys).



Zontop Modern Luxury Easy Assemble 2 Story China Prefabricated 20ft 40 Ft Shipping Prefab Container HouseZontop Modern Luxury Easy Assemble 2 Story China Prefabricated 20ft 40 Ft Shipping Prefab Container House

Packing and shipping

Zontop Modern Luxury Easy Assemble 2 Story China Prefabricated 20ft 40 Ft Shipping Prefab Container House

FAQ

Zontop Modern Luxury Easy Assemble 2 Story China Prefabricated 20ft 40 Ft Shipping Prefab Container House

Q1: Delivery time

A1: The delivery time is according to your quantity and color,generally it is within 15-30 days.

Q2: Month Capacity

A2: Prefab house: 220,000m2, Container house: 1,800units.

Q3: How to install

A3: We will send install instruction and video for you,technicians will be sent to help you if it is necessary. However,the visa fee,air tickets,accommodation,wages will be provided by buyers.

Q4: Pre-order work

A4:Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos, design works are available according to your requirements.

Q5: Package

A5: Container house is in flat pack. Other houses will be loaded into shipping containers(main structure and panels in bulk, door/ ceiling / floor tiles / furniture in cartons, sanitary / electrical / plumbing/ hardware/ fittings/ tools in wooden case ).

Q6: Lifespan & warranty period

A6: Prefab house lifespan 10years, Container house lifespan 15years, and Steel structure building lifespan 20years. All kinds houses warranty period 12months from the delivery.

Our Certificates

Zontop Modern Luxury Easy Assemble 2 Story China Prefabricated 20ft 40 Ft Shipping Prefab Container House

Company Profile

Zontop Modern Luxury Easy Assemble 2 Story China Prefabricated 20ft 40 Ft Shipping Prefab Container House

We have 8 production lines for prefab house series ( Month capacity : 220,000M2 ) ; 4 production lines for container house series ( Month capacity : 1,800units ) ; 3 painting production lines. With different professional production lines and strict production process, our products will be lighter with more strength, anti-rust, fireproof, waterproof, heatproof and silence functions. All our products have been widely used for labor camp, office, living home, warehouse/workshop, high rise building, poultry industry etc. The according products are flexible installation, good and comprehensive economic efficiency, environmental protection. Zontop pre-order work : with powerful support from our design department, we will provide you the suitable solution according to your requirements. Zontop after order work : 380 installation staff and 30 service engineers under our management team for our customers, part of experienced engineers will be trained with both site ability and language ability to meet overseas market demand gradually. We look forward to joining your hands to create a brighter future. Your inquiry is welcomed at any time!
